Long Range Antennas for Multiverse and SHoW DMX


Many broadcast problems are overcome by using specialized antennas, either to increase range or to focus radio energy to a specific area. The specialized long range antennas listed on the page are available for different scenarios in a Multiverse or SHoW DMX wireless DMX setup.

  • ANTENNA OMNI 900MHz/2.4GHz 1.8dBi/3.8dBi STUBBY DUAL I

  • 2dBi INDOOR OMNI 2.3" ANTENNA

  • 4dBi INDOOR OMNI ANTENNA

  • OMNI BROADBAND 900MHz/2.4GHz, 2dBi/4dBi ANTENNA

  • PANEL, 900MHz/2.4GHz, 6.8dBi/8.5dBi ANTENNA

  • YAGI, 900MHz/2.4GHz, 11dBi ANTENNA

  • ANTENNA SPLITTER

  • ANTENNA ADAPTER CABLE, 36", RPSMA (M) TO N (M)

  • ANTENNA ADAPTER CABLE, 36", N (M) TO N (M)

  • GENDER CHANGER FOR 5637 ANTENNA SPLITTER

  • ANTENNA EXTENSION CABLES

Antena Omni 900MHz/2.4GHz 1.8dBi/3.8dBi Stubby Dual I -for the Multiverse Studio

Specs Coming Soon


Untitled design (2).jpg

Antenna, Panel, 900MHz/2.4GHz, 6.8dBi/8.5dBi Part # 5981

Dimensions:
7" high x 8" wide x 2" deep

This panel antenna is a directional unit with a 60º Beam spread.

These antennas can be used with a single transmitter in a pair with a splitter to send the radio signal in two different directions (e.g. two sides of a building with the transmitter mounted at the corner).

The 5981 Panel Antenna antenna can be used for indoor or outdoor projects.

The 5981 Panel Antenna comes with mounting bracket and attached 6" lead with female "N" connector. To connect to SHoW Baby, Neo Tx or Rx, Multiverse Node or Multiverse Transmitter requires a 5638 Adapter Cable. To connect to Vero requires a 5641 Adapter Cable.

The 8dBi Panel is legal in the EU with the use of a splitter. When using high gain antennas be certain that the EIRP of your system is within permissible limits of your local regulatory body. Should you have specific application questions, please contact our engineering department for guidance.


Azimuth Patterns

Azimuth Patterns

Elevation Patterns

Elevation Patterns

N-Connector Female

N-Connector Female

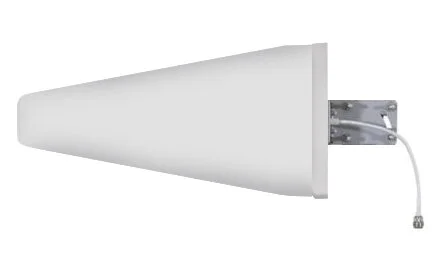

Antenna, Yagi, 900MHz/2.4GHz, 11dBi Part # 5982

This highly directional Yagi antenna has a 35º Beam width. Yagi antennas focus most of their energy forward producing a highly directional, narrow beam. A good choice for very long range broadcast to fixed targets.

Dimensions: 16" wide x 8" high x 2" deep

Dimensions:
16" wide x 8" high x 2" deep

N-Connector Female

N-Connector Female


The 5982 Yagi Antenna comes with mounting bracket and attached 6" lead with female "N" connector. To connect to SHoW Baby, Neo Tx or Rx, Multiverse Node or Multiverse Transmitter requires a 5638 Adapter Cable. To connect to Vero requires a 5641 Adapter Cable.

The 5982 Yagi Antenna can be used for indoor or outdoor projects.

When using high gain antennas be certain that the EIRP of your system is within permissible limits of your local regulatory body.

Azimuth Patterns

Azimuth Patterns

Elevation Patterns

Elevation Patterns



4.5dBi Omni (Outdoor) Part # 5732

The 4.5dbi Omni Antenna is a wide band, high gain omni-directional antenna for use in the 2.4GHz frequency range.

This antenna is designed and intended for use outdoors.

Azimuth Patterns

Azimuth Patterns

Elevation Patterns

Elevation Patterns

N Connector Male

N Connector Male




Antenna Splitter Part # 5637

Connect two antennas to one transmitter.  This decreases the output to each antenna by 50%, but can allow you to broadcast "around corners."

All three connectors are N-Connector Female.

Identifying Connectors

Identifying Connectors

N Connector Female

N Connector Female




Antenna Adapter Cable, RPSMA (M) to N (M) 36", LMR-200 Part # 5638

The 5638 Antenna Adapter Cable adapts SHoW Baby, Neo Tx or Rx, Multiverse Node, or Multiverse Transmitter's RSMA Connector Male to the N-Connector Female on the antenna.

This cable is 36" long.



Antenna Adapter Cable, N (M) to (N) M, 36", LMR-200 Part # 5641

The 5641 Antenna Adapter Cable is 36" long with N-Connector Males at each end.

The 5641 Antenna Adapter Cable adapts from SHoW DMX Vero or Vero Net's N-Connector Female to the female N-Connector on a Panel or Yagi Antenna.



N-Connector Male to N-Connector Male Part # 5639




Antenna / Device Connection Matrix PDF

This chart shows which antennas and antenna accessories work with various SHoW DMX SHoW Baby, SHoW DMX Neo, SHoW DMX Neo, and Multiverse Wireless DMX products.

N Connector Female N Connector MaleThreads outside Threads Inside - Smaller neck Larger Neck - Hole in center - Pin in Center

N Connector Female N Connector Male

Threads outside Threads Inside
- Smaller neck Larger Neck
- Hole in center - Pin in Center

RP-SMA Female RP-SMA MaleThreads outside Threads inside - Larger neck Smaller neck - Pin in center Hole in Center

RP-SMA Female RP-SMA Male

Threads outside Threads inside
- Larger neck Smaller neck
- Pin in center Hole in Center
